# 3. LDAP Enumeration (Port 389)

LDAP (Lightweight Directory Access Protocol) is an Internet protocol for accessing distributed directory services over a network. LDAP uses DNS (Domain Name System) for quick lookups and fast resolution of queries. A client starts an LDAP session by connecting to a DSA (Directory System Agent), typically on TCP port 389, and sends an operation request to the DSA, which then responds. BER (Basic Encoding Rules) is used to transmit information between the client and the server. One can anonymously query the LDAP service for sensitive information such as usernames, addresses, departmental details, and server names.

## 1. Active directory Explorer

Active Directory Explorer (AD Explorer) is an advanced Active Directory (AD) viewer and editor. It can be used to navigate an AD database easily, define favorite locations, view object properties and attributes without having to open dialog boxes, edit permissions, view an object’s schema, and execute sophisticated searches that can be saved and re-executed.

{% embed url="<https://learn.microsoft.com/en-us/sysinternals/downloads/adexplorer>" %}

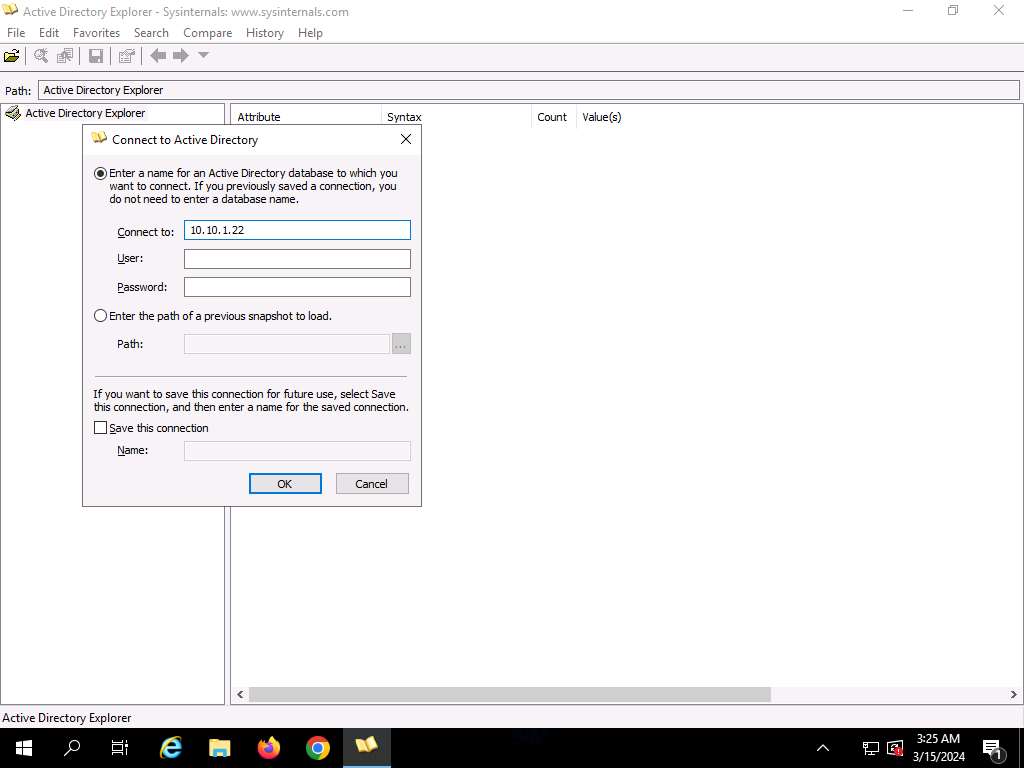

1. Once, you open the tool, the **Connect to Active Directory** pop-up appears; type the IP address of the target in the **Connect to** field (here, we are targeting the **Windows Server 2022** machine: **10.10.1.22**) and click **OK**.

   ![Screenshot](https://labondemand.blob.core.windows.net/content/lab168797/screens/lm0x1yw3.jpg)

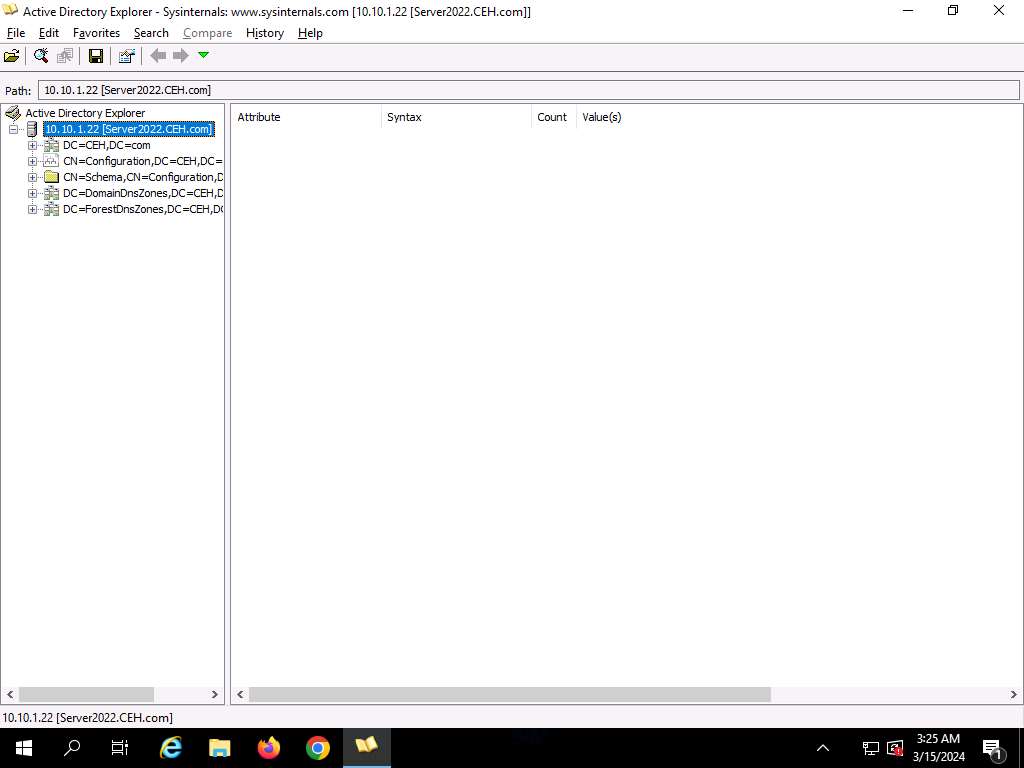

2. The **Active Directory Explorer** displays the active directory structure in the left pane, as shown in the screenshot.

   ![Screenshot](https://labondemand.blob.core.windows.net/content/lab168797/screens/5ckk1qif.jpg)

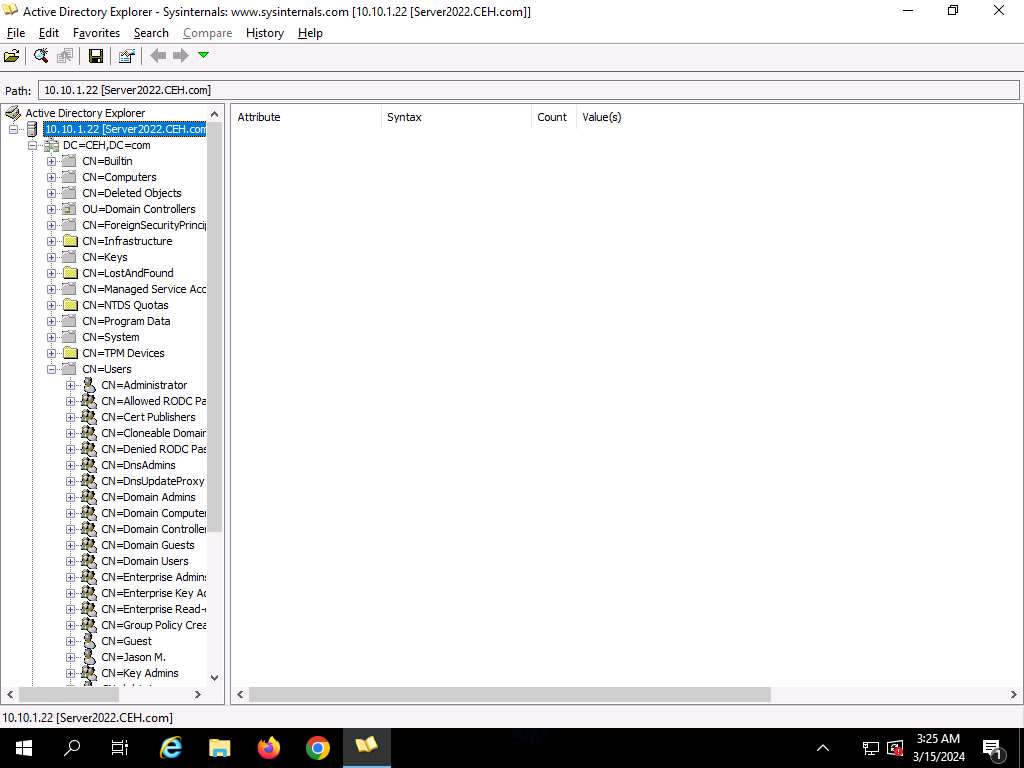

3. Now, expand **DC=CEH**, **DC=com**, and **CN=Users** by clicking “**+**” to explore domain user details.

   ![Screenshot](https://labondemand.blob.core.windows.net/content/lab168797/screens/15t2u42f.jpg)

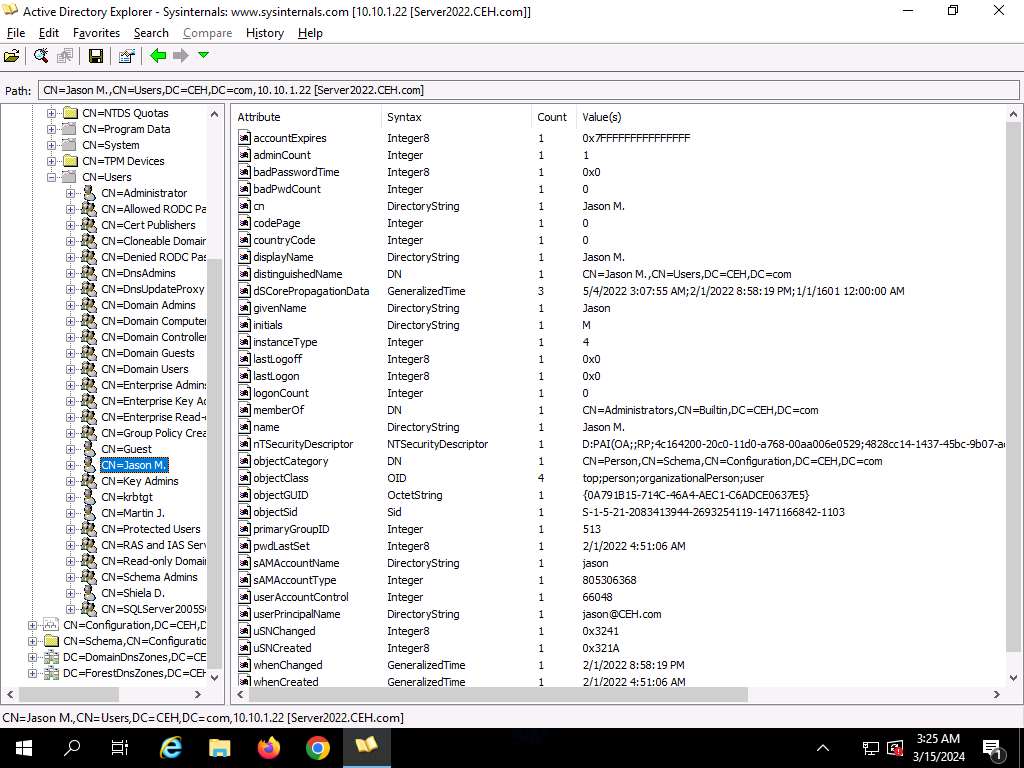

4. Click any **username** (in the left pane) to display its properties in the right pane.

   ![Screenshot](https://labondemand.blob.core.windows.net/content/lab168797/screens/hx2f5ffx.jpg)

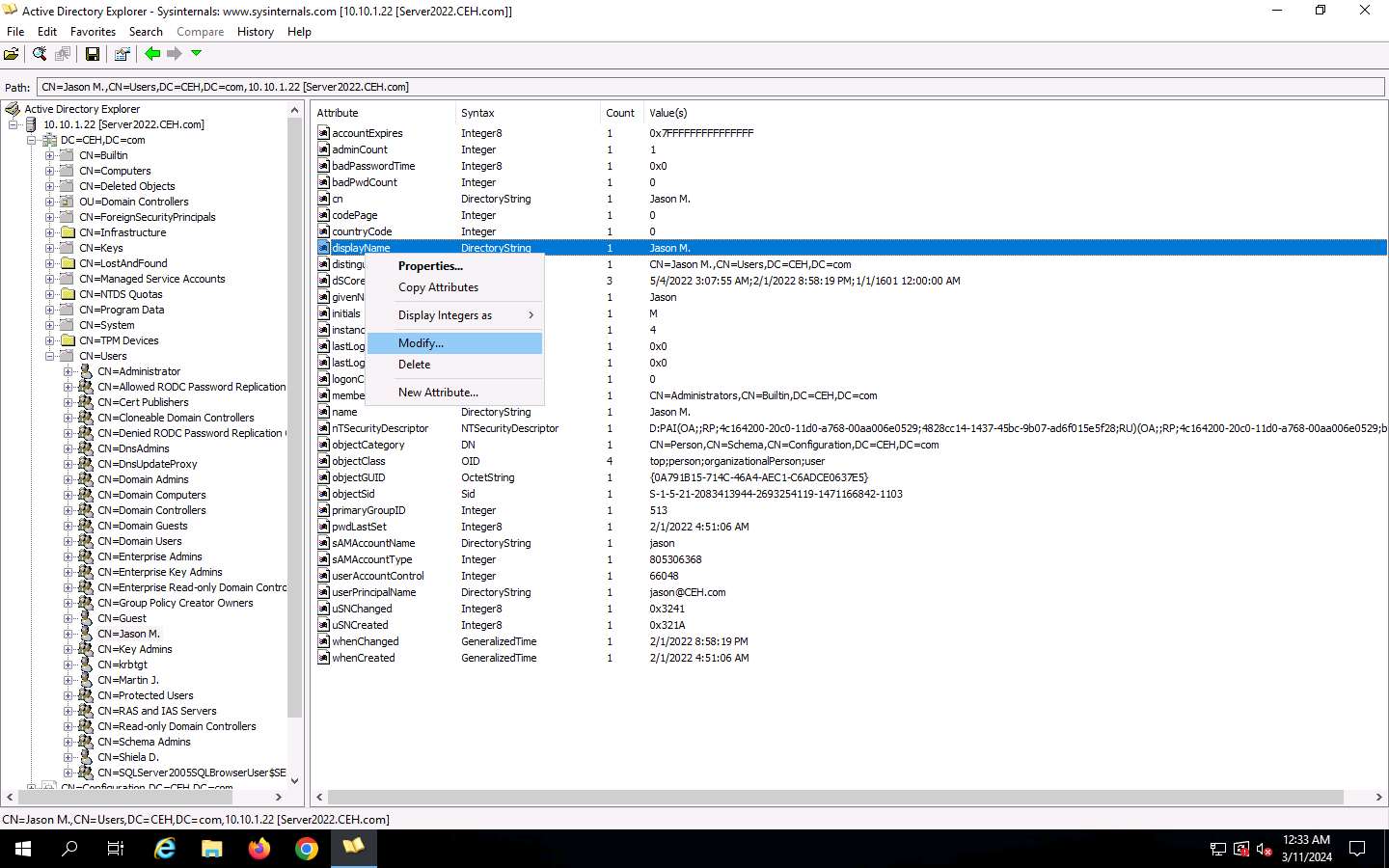

5. Right-click any attribute in the right pane (here, **displayName**) and click **Modify…** from the context menu to modify the user’s profile.

   ![Screenshot](https://labondemand.blob.core.windows.net/content/lab168797/screens/owjgkv0m.jpg)
6. The **Modify Attribute** window appears. First, select the username under the **Value** section, and then click the **Modify…** button. The **Edit Value** pop-up appears. Rename the username in the **Value data** field and click **OK** to save the changes.
7. You can read and modify other user profile attributes in the same way.

## <mark style="color:red;">2. LDAP enumeration with python and Nmap</mark>

Nmap scan LDAP

```
sudo nmap -sU -p 389 192.168.18.110
```

Brute force LDAP

```
sudo nmap -p 389 --script ldap-brute --script-args '"cn=users,dc=CEH,dc=com"' 192.168.18.110
```

-p specifies the port. ldap-brute to brute the LDAP and args if set will be used as base to brute force.

Now start python3

```
python3
import ldap3
```

Now use the following commands

```
server=ldap3.server('192.168.18.110',get_info=ldap3.ALL,port=389)
connection=ldap3.connection(server)
connection.bind()
server.info
```

Now to get more information.

```
connection.search(search_base='DC=CEH,DC=COM',search_filter='(&(objectclass=*))',search_scope='SUBTREE',attributes='*')
```

```
connection.entries
```

```
connection.search(search_base='DC=CEH,DC=COM',search_filter='(&(objectclass=person))',search_scope='SUBTREE',attributes='userpassword')
```

```
connection.entries
```

## <mark style="color:red;">3. LDAP Enumertion with ldapsearch</mark>

```
ldapsearch -h 192.168.18.110 -x -s base namingcontexts
```

{% hint style="info" %}
-x simple authentication

-h specifies the host

-s specifies the scope
{% endhint %}

<figure><img src="/files/MVlACJkjVbVUUusWOtCM" alt=""><figcaption></figcaption></figure>

```
ldapsearch -h 192.168.18.110 -x -b "DC=CEH,DC=COM"
```

{% hint style="info" %}
-b base DN for search
{% endhint %}

<figure><img src="/files/DmeXNrvVOzZ20fovbCfY" alt=""><figcaption></figcaption></figure>

```
ldapsearch -h 192.168.18.110 -x -b "DC=CEH,DC=COM" "objectclass=*"
```

<figure><img src="/files/Sa9iRLwERCOUAZo7Xsfv" alt=""><figcaption></figcaption></figure>

<mark style="color:green;">You can also use other LDAP enumeration tools such as</mark> <mark style="color:green;"></mark><mark style="color:green;">**Softerra LDAP Administrator**</mark> <mark style="color:green;"></mark><mark style="color:green;">(<https://www.ldapadministrator.com>),</mark> <mark style="color:green;"></mark><mark style="color:green;">**LDAP Admin Tool**</mark> <mark style="color:green;"></mark><mark style="color:green;">(<https://www.ldapsoft.com>),</mark> <mark style="color:green;"></mark><mark style="color:green;">**LDAP Account Manager**</mark> <mark style="color:green;"></mark><mark style="color:green;">(<https://www.ldap-account-manager.org>), and</mark> <mark style="color:green;"></mark><mark style="color:green;">**LDAP Search**</mark> <mark style="color:green;"></mark><mark style="color:green;">(<https://securityxploded.com>) to perform LDAP enumeration on the target.</mark>
